1 Low noise, low vibration and easy operation
2 Low fuel consumption, long-distance outdoor use; comprehensive protection system, energy saving.
3 Diesel engine: YUCHAI diesel engines ,low fuel consumption, and perfect after-sales service system.
4 Good adaptability: The air compressor automatically controls the air supply volume of the diesel engine by matching the demand of air consumption,which is equivalent to the variable frequency control of the electric screw air compressor.

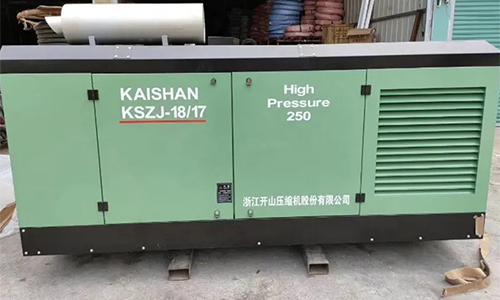

Diesel stationary screw KSZJ-18/17 air compressor is widely used in highway, railway, mining, water conservancy.
| Model type | KSZJ-18/17 |
| Gas flow rate | 18m³/min |
| The rated exhaust pressure. | 1.7Mpa |
| Weight | 3200kg |
| Dimensions | 3000*1800*2000mm |
| Engine | YUCHAI 260HP |
| Type |
vertical, inline,water cooling
|
| Inhalation method | Turbocharged |
| Bore × Stroke × Number of Cylinders | 108*132*6 |
| Displacement | 7.255L |
| Rated speed | 1800r/min |
| Unload speed | 1400r/min |
| Diesel oil capacity | 21.9L |
| Fuel tank capacity | 350L |
| Compression levels | 1 |
| Compressor Oil Capacity | 48L |
