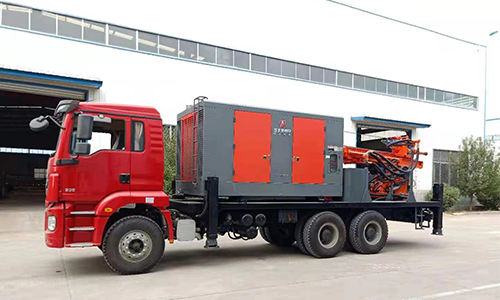

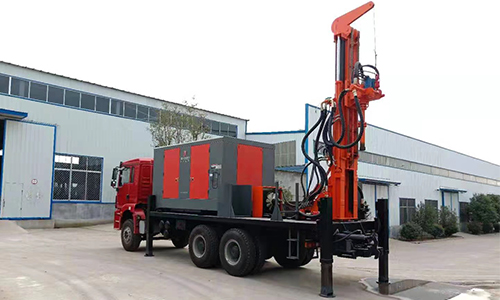

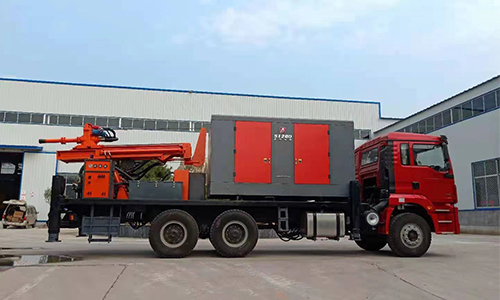

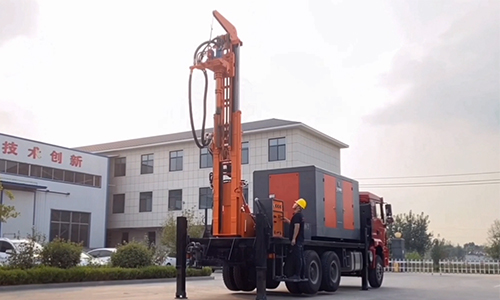

FY350T truck water well drilling rig

1.The drilling rig can use air DTH Hammer drilling and mud drilling.

2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

3.It's a hydraulic rotary drilling rig with directional circulation. It is equipped with BW450/5 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

4.92kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

5.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

6.It can set up a generator which is convenient to welding or illuminate for work at night.

7.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

8.Competitive in price, low cost of maintain.

FY350T Multi-functional truck mounted water well drilling rig is an efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
