All-Channel Speedy Groundwater Detector
- Mobile:
+86-15137425291 - E-mail:
akldrill@gmail.com
1.Depth segmentation selectable, with start and end depths selectable within the maximum depth range.

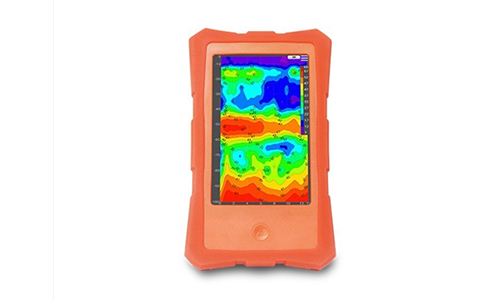

2.7-inch high brightness touch screen, handheld touch control, horizontal and vertical screen switch freely
3.Magnetic multifunction Connector (Battery charging, data transfer connection to sensors and MN cable only in one connector)
4.High-performance radiator to improve the performance of the
instrument, Total weight is only 990g,Waterproofdropproof waterproof and dustproof;
5. Support wireless projection, multi-screen interaction
6.Built-in high-performance lithium battery, standby time 10 Hours, external mobile phone chargers and charging treasures can be connected;
The ADMT-ZN series all-channel ground water speedy detector is used to find out the location, depth, yield and other related information of groundwater to guide operations of borewell drilling to increase success rate and guide conducting regional hydrogeological investigations.
| Model | ADMT-180ZN | ADMT-300ZN | ADMT-600ZN | ADMT-900ZN | ADMT-1200ZN |
| Maximum depth | ≤180mm | ≤300mm | ≤600mm | ≤900mm | ≤1200mm |
| Depth layering | 5Meter spacing segment setting | 10Meter spacing segment setting | |||
| Channel compatible | compatible1-60channel (standard single channel lMN, various MN and TT accessories optional) | ||||
| measurement mode | MN/TT | ||||
| Frequency Range(Hz) | 1-5000HZ | ||||
| Frequency selective filtering | FFT Intelligent frequency selection filter | ||||
| resolution | 0.01mV±2% | ||||
| Sampling time(seconds) | 10 | ||||
| connection method | Multifunctional magnetic suction connector (including charging, USB, signal input),WiFi,Bluetooth4.0 | ||||
| display screen | 7inchIPHighlight touch screen, automatic switching between horizontal and vertical screens | ||||
| resolution | 800*1280 | ||||
| operating system | android8.1 | ||||
| CPU | ROCKCHIP 4nuclearA1 | ||||
| GPU | Mali T74 | ||||
| Memory | DDR3/2GB | ||||
| memory | 16 GB | ||||
| The main function | Automatic analysis, free software upgrade, channel compatibility, depth segmentation setting, real-time curve graph, contour color map | ||||
| Other function | Other functions Waterproof and dustproof, camera (with fill light), wireless projection, multi-screen interaction | ||||
| battery power consumption | 6000mA/H | ||||
| Host weight | ＜1kg | ||||
