1, This water well drilling rig can drill 120m depth in area there is no rock
2, It can drill 20m-30m per hour in area there is no rocks.
3, If with PDC drilling bit, it can drill through rocks, about 0.5m/hour
4, Durable and with a long working life, . With hydraulic lifting system and hydraulic motor
5, Offer free main part in the first year if because of quality

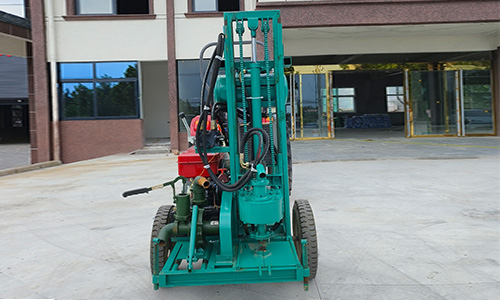

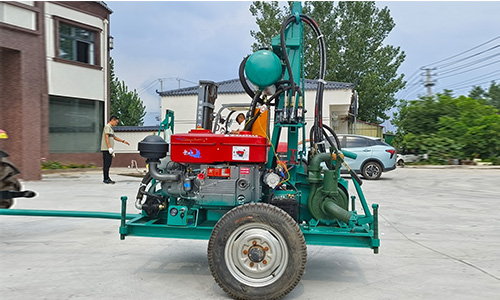

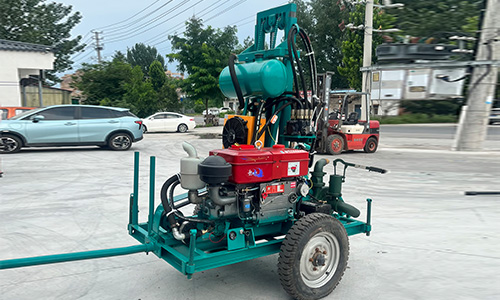

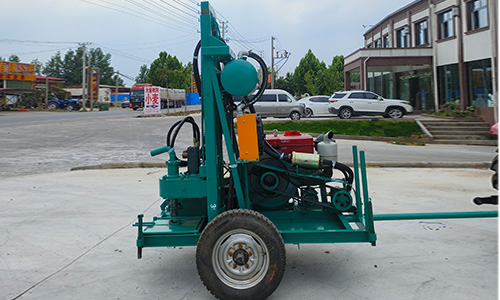

This portable diesel engine hydraulic drilling rig widely used for water well drilling, especially small water wells for home or small farm. also could be used for some small construction work.
| Type | AKL-150Y+ |
| Max. Drilling Diameter | 300mm |
| Max. Drilling Depth | 120m |
| Diesel Engine | 22HP |
| Capacity of hoist | 2t |
| Height of tower | 2.5m |
| Measurement | 1600mm*900*2000mm |
| Total Weight | 850kgs |
| Drilling Rod Length | 1.5m/piece |
| Diameter of Drilling Rod | 51mm |
