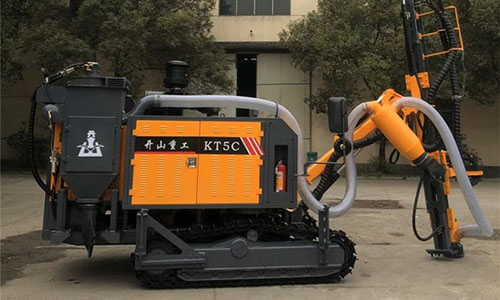

KT5C Kaishan Integrated DTH Drilling Rig.
- Mobile:
+86-15137425291 - E-mail:
akldrill@gmail.com
1.Strong and reliable power ,Powered by Yuchai double-cylinder diesel engine, the drilling rig has large traction power and strong climb capacity; due to small body vibration, it operates smoothly.
2.With flexible drill boom, it can adjust drilling angle and horizontal hole height by controlling expansion of the oil cylinder, thus extending the drilling range and improving product adaptability.
3.Using two independent gear pump to supply oil, reliable, adaptable, easy to maintain. It adopts gear drive and flexible connection and runs smoothly and steadily with compact structure. Stable hydraulic system Using special hydraulic components to improve the stability and reliability of the system. Additional oil cooling device, eliminating the influence of the hydraulic oil heat system.
"Kaishan" brand KT5C integral type high wind pressure openair crawler drilling rig is using a power to drive hydraulic system Suitable for openpit mine, quarry, highway,railway, water conservancy, electric power, construction and other medium and deep hole in the stone engineering extension rod drilling
Model of drill rig | KT5C |
Drilling hardness | f=6-20 |
Drilling diameter | 80-105mm |
Depth of economical drilling | 25m |
Travelling speed | 2.5/4.0km/h |
Climbing capacity | 30° |
Ground clearance | 430mm |
Power of complete machine | 140kw |
Diesel engine | YC6J190-T303/Yuchai YC6J190-T303 |
Capacity of screw compressor | 10m³/min |
Discharge pressure of screw compressor | 15bar |
Outer dimensions(L*W*H) | 6500*2400*2600mm |
Weight | 8000kg |
Rotation speed of gyrator | 0-120r/min |
Rotary torque | 1400N*m |
Maximum push-pull force | 25000N |
Lifting angle of beam | Up 54°, down 26° |
Tilt angle of beam | 125° |
Swing angle of carriage | Right 47°, left 47° |
Lateral horizontal swing angle of carriage | Right -15°~97° |
Swing angle of drill boom | Right 53°, left 15° |
Leveling angle of frame | Up 10°, down 9° |
One-time advance length | 3000mm |
Compensation length | 900mm |
DTH hammer | M3 |
Drilling rod | 64*3000mm |
Method of dust collecting | Dry type (hydraulic cyclonic laminar flow) |
